Lens

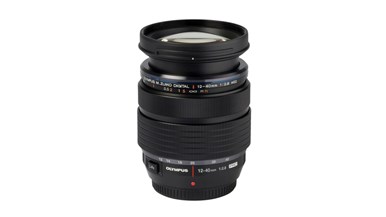

M.ZUIKO DIGITAL ED 12-40mm 1:2.8 Pro
Zoom range (mm)
24 – 80
Lens factor
3.3
Minimum aperture range (f-stops)
2.8
Minimum shutter speed (secs)
1/8000
Maximum shutter speed (secs)
60
Lens diameter (mm)
68
Lens length (mm)
100
Lens weight (g)
428
Lens filter thread (mm)
62
Lens mount
Not applicable
Sensor type
Live MOS
Sensor size
17.3 x 13
Effective resolution (MP)
20.2
Dimensions (mm, WxHxD)
149 x 148 x 83
Weight (g)
1049
Tripod socket
Metal (centred)
Start-up time (sec)
0.8
Shutter delay 1m (sec)
0.13
Shutter delay 8.5m (sec)
0.13
ISO rating
200 – 25600
Exposure correction (lower)
-5
Exposure correction (higher)
5
Continuous shooting mode
14.3
Frame limit in continuous mode
1000
Number of selectable exposure programs
5
Closest focus wide (m)
0.2
Closest focus tele (m)
0.2
Closest focus macro (m)
Not applicable
Focus points (auto mode)
121
Monitor size (mm)
62 x 41
Monitor ratio
3:2
Monitor swivel (V x H, deg)
270 x 180
Viewfinder type
Electronic viewfinder
Viewfinder diopter
-4 x 2
Video ratios supported
4:3, 16:9
Video format
AVI, MOV (codec AVC, MP4/H.264)
Maximum frame rate – progressive
60
Number of selectable exposure programs – video
4
Audio recording format
Stereo
Memory card type
UHS-II
Internal memory (MB)
None
Number of memory cards – insertable
Not tested
Image ratios supported
3:2, 4:3, 16:9
Flash type
Not applicable
Battery type
Li-Ion (2)
CIPA battery cycles
Not stated
Image editing software
Not stated
RAW converter software
Not stated
Video editing software
Not stated
